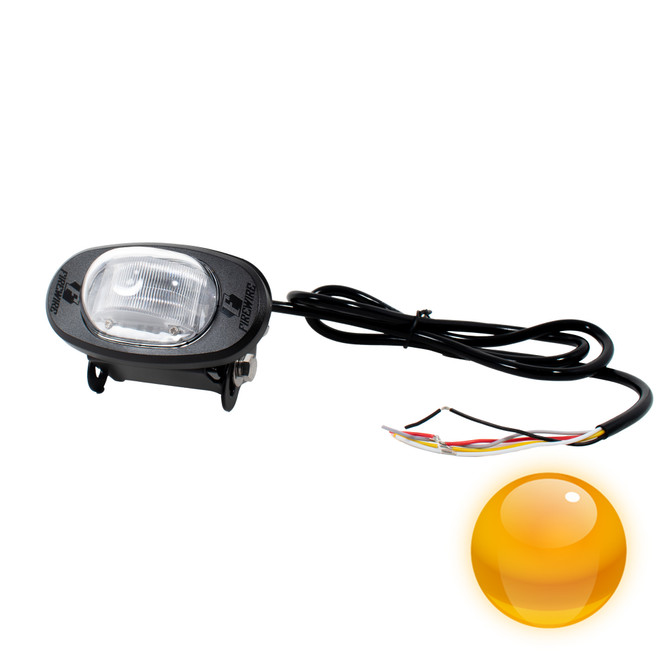

FIREWIRE LEDS SURFACE MOUNT V2 AMBER/AMBER
Upgrade your vehicle’s visibility and safety with the FIREWIRE LEDS Surface Mount V2 Amber/Amber strobe light. Engineered for professional-grade performance, this compact, high-intensity LED light is ideal for emergency, construction, utility, and off-road vehicles.
With 19 built-in flash patterns, including Single, Quad, Octa, SOS, and Steady On, you’ll have complete control over how you alert others on the road. The dual-color (Amber/Amber) setup enhances visibility in all weather and lighting conditions.
Designed with a rugged aluminum base, PC lens, and IP67/IP69K waterproof rating, the Surface Mount V2 is built to handle extreme environments. Sync up to 14 units, and choose between bolt-on or bracket mounting for flexible installations.
*Working voltage: DC 12-24V
*Power: 4LED*3W
*Meets ECE R65 Class 2, SAE J595, ECE
*Flash patterns: 19
*PC lens and aluminum base
*IP67/69K waterproof
*Maximum 14 units can be synchronized and
*Mounting options: 2 bolts or bracket
*Working temperatures: -30℃ (-22F) to 60℃ (140F)
*Multiple colors are available
|
Flash patterns
|
|
1
|
Single flash (ECE R65）
|
11
|
Double flash- Slow
|
|
2
|
Double flash (ECE R65, SAE) R10, CE
|
12
|
Triple flash
|
|
3
|
Quad flash (ECE R65)
|
13
|
Quad flash - Slow
|
|
4
|
Octa flash (ECE R65)
|
14
|
Octa flash - Slow
|
|
5
|
Single flash - Alternate
|
15
|
Twelve flash
|
|
6
|
Double flash - Alternate alternated
|
16
|
Single flash- Accelerate
|
|
7
|
Quad flash - Alternate
|
17
|
Double flash- Accelerate
|
|
8
|
Octa flash - Alternate
|
18
|
SOS
|
|
9
|
Single flash - Slow
|
19
|
Steady on
|
|
10
|
Single Pulse
|
/
|
Red：+VDC
Black: -Ground
Yellow: Pattern change + Synchronization
Connect to +VDC for less then 1 second, next pattern;
1-3 seconds back to previous pattern;
3 to 5 seconds to pattern #1;
More than 5 seconds to low power and 5 seconds again resume to high power.
White: Steady on. Constantly connect to +VDC for steady on.
Grey: Alternate flash. First connect all yellow wires together, and connect all grey wires of Group "A" together to +VDC, and leave the rest as Group "B". Then Group A & B will start alternating. Disconnecting grey wires from +VDC the lights will be back to being synchronized.
Mounting Options:
